Kirschner Wires, Pins and Cerclage characteristics:

Surgival offers a wide range of surgical fixation devices for anatomical reduction of osteosynthesis fragments:

• Kirschner wire
• Steinmann pins
• Cerclage wire

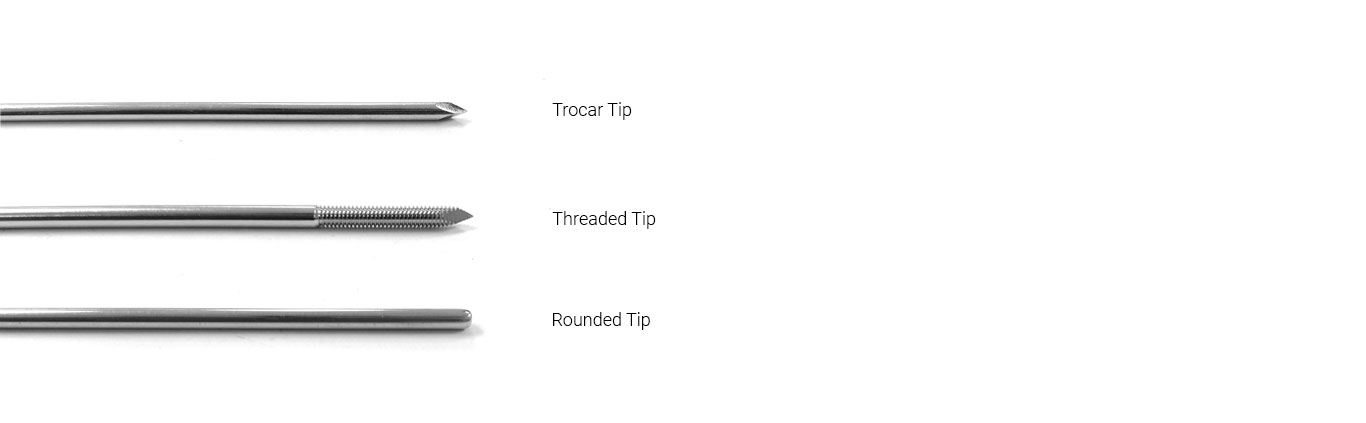

KIRSCHNER WIRES

Specifications:

• Material: Stainless Steel (ISO 5832-1)
• Available variations:
  • TROCAR TIP:  Ø 0.5 mm, 1 mm, 1.2 mm, 1.5 mm, 1.8 mm, 2 mm, 2.2 mm, 2.5 mm, 3 mm, 3.5 mm
  • ROUNDED TIP: Ø 2 mm, 2,5 mm, 3 mm, 4 mm
  • THREADED TIP: Ø 1,2 mm, 1,5 mm, 1,8 mm, 2 mm, 2,5 mm, 2,8 mm
  • TWO TROCAR TIPS:  Ø 0,8 mm, 1 mm, 1,2 mm, 1,5 mm, 1,8mm, 2 mm, 2,2 mm, 2,5 mm, 3 mm
  • TWO THREADED TIPS: Ø 1,2 mm, 1,5 mm, 2 mm, 2,5 mm, 3 mm
• All the variations are available in different lengths (see the general trauma catalogue)

STEINMANN PINS

Specifications:

• Material: Stainless Steel (ISO 5832-1)
• Available variations:
  • TROCAR TIP:  Ø 2 mm, 2,5 mm, 2,7 mm, 3 mm, 3,5 mm, 4 mm, 4,5 mm, 4,8 mm, 5 mm, 5,5 mm, 8 mm, 9mm
  • SQUARE END: Ø 3 mm, 4 mm
  • BAYONET TIP: Ø 3,5 mm, 4 mm, 4,5 mm, 5 mm
  • THREADED TIP: Ø 3,2 mm
  • TWO TROCAR TIPS:  Ø 3,5 mm, 4 mm, 4,5 mm, 5 mm
  • THREE PLANES: Ø 5 mm, 7 mm
  • THREADED: Ø 5 mm
• All the variations are available in different lengths (see the general trauma catalogue)

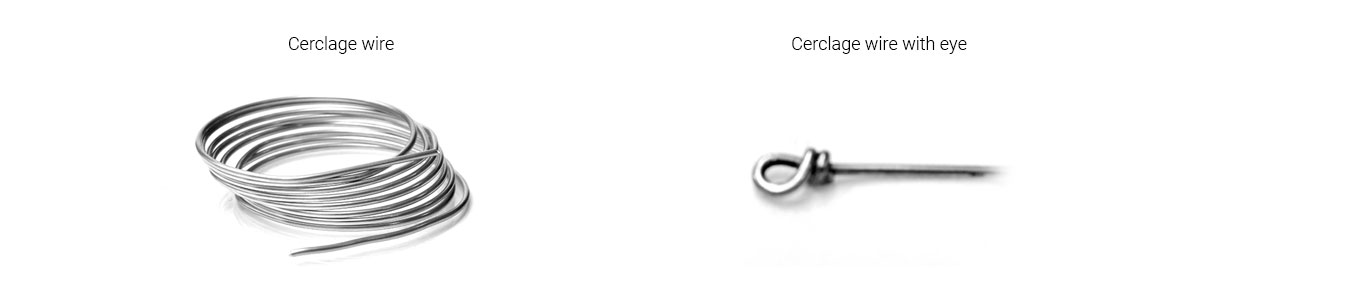

CERCLAGE WIRES

Specifications:

• Material: Stainless Steel (ISO 5832-1)
• Available variations:
  • CERCLAGE WIRE Ø 0.8 mm, 1 mm, 1.2 mm, 1.5 mm. LENGTH: 10 m
  • CERCLAGE WIRES WITH EYE  Ø 1 mm, 1,2 mm, LENGTH: 280 mm
